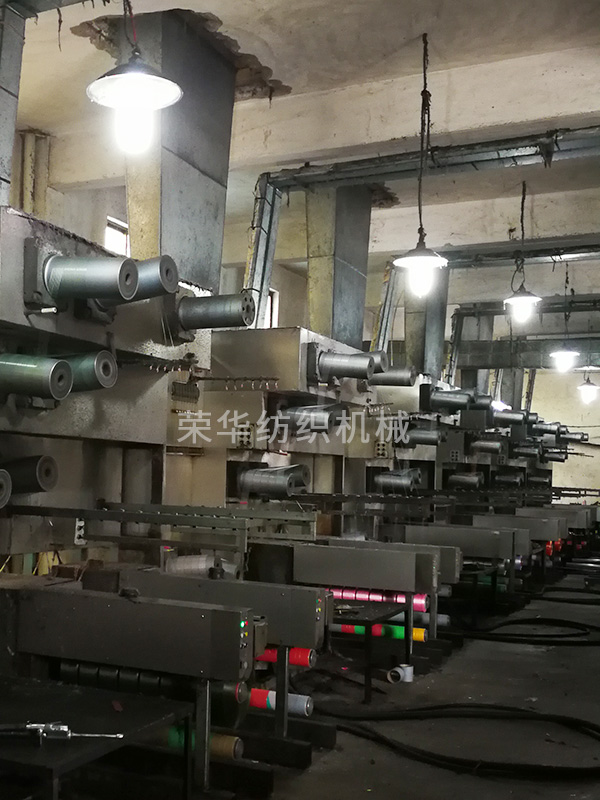

Upjohn Polypropylene FDY spinning machine:

Upjohn Polypropylene FDY spinning machine is mainly used for spinning 100 to 2000 denier polypropylene filament Upjohn, the product is fully oriented drawn yarn (FDY). Its raw material is polypropylene slice.

Upjohn polypropylene filament mainly used for: curtain cloth, sofa cloth and other office furniture, as well as luggage belt, packet-zone Simmons, ropes and other fields.

 The basic parameters of the device:

 Finished fineness: 100 to 2000 (Dan)

 Mechanical speed (maximum): 3000m / min

 Process speed (maximum): 1600m / min ~ 2400m / min

Parts per tow Number: 4,6,8,12,16 beam

 Number drafting zone: Zone 3

Equipment main components:

1, the automatic feeder

2, masterbatch injection machine

3, screw extruder

4, pre-filter (selected by the user)

5 spinning boxes and components

6, metering pumps and drive

7, a side corridor hair and

8, drawing heat roller

9, winding frame and nozzle (tanker) oiling

10, the network device

11, automatic winding machine

12, the electronic control system: with screw voltage control cabinet, spinning box temperature control cabinet, temperature-controlled cabinet drawing, drawing frequency counters, frequency counters and winding conventional electrical control system.

Device main features:

1. Can be used in the field of renewable materials

2. The high-frequency heat roller can be heated, low energy consumption, hot roll temperature uniformity

3. side blowing velocity uniformity and stability

4. equipment operation and stability, low failure rate, easy operation and maintenance
